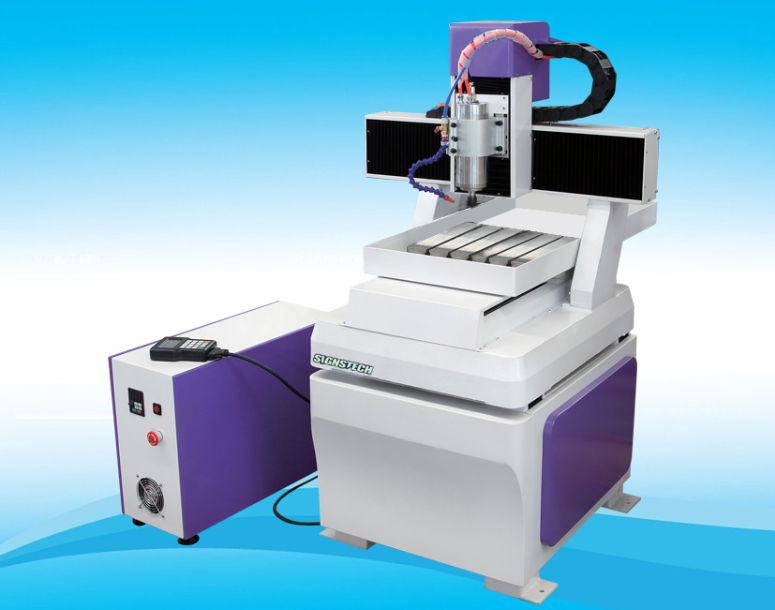

Deluxe 4030C Desktop CNC Router
Model: 4030C
Price:
- Features
- Parameters
- Video
- Download
 |
Base Frame:iron casting base being precisely processed by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine. |
 |
Linear Square Guide:20MM linear square guide with double bearings,an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. |
 |

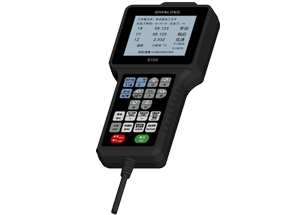

Shanlong DSP controller with English interface, A compact and durable DSP with 128M internal memory, it supports U flash memory as well as online file communication.It is available with standard G code or HPGL, and has practical functions like faster calculation, stronger processing ability,breakpoint memory and power failure protection function,etc. |
 |

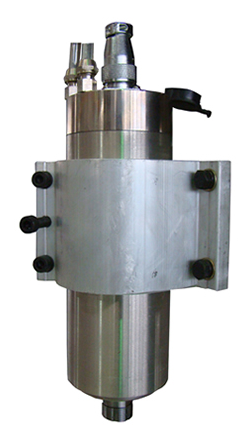

Spindle: Quality 1.5kw water cooling spindle with better performance of cost-effectiveness, various spindle options available for different requirements. |
 |

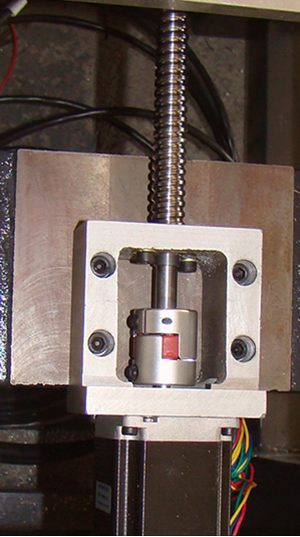

Bolt Pole: Quality C5 bolt pole with diameter 16mm and re-positioning accuracy 0.01mm for X,Y,Z axis. |
 |
Fasten Nut for every Screw to eliminate the interval efficiently. |
 |
Stepper Motor:Industrial sub-divided stepper motor centered drive has outstanding wearability and it offers long-term maintenance-free solution. |
 |

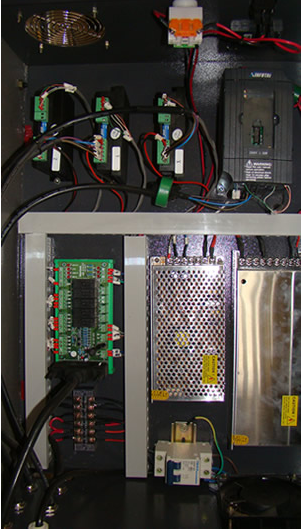

Electric Cabinet:All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet. |
| Model | 4030C |
| Table Size | 320x420mm |
| Max Material Thickness | 100mm |
| Working Size | 300×400×80mm |
| Spindle | 1.5kw water cooled |
| Transmission | Ball Screw and Linear Square Guide |
| Rapid Speed | 4500mm/Minute |
| Min.Feeding Speed | 1mm/s |
| XYZ Resolution | 0.0125mm |
| File Format | G Code or HPGL |
| Weight | 120kg |
| Packing Size | 700x710x1300mm |
