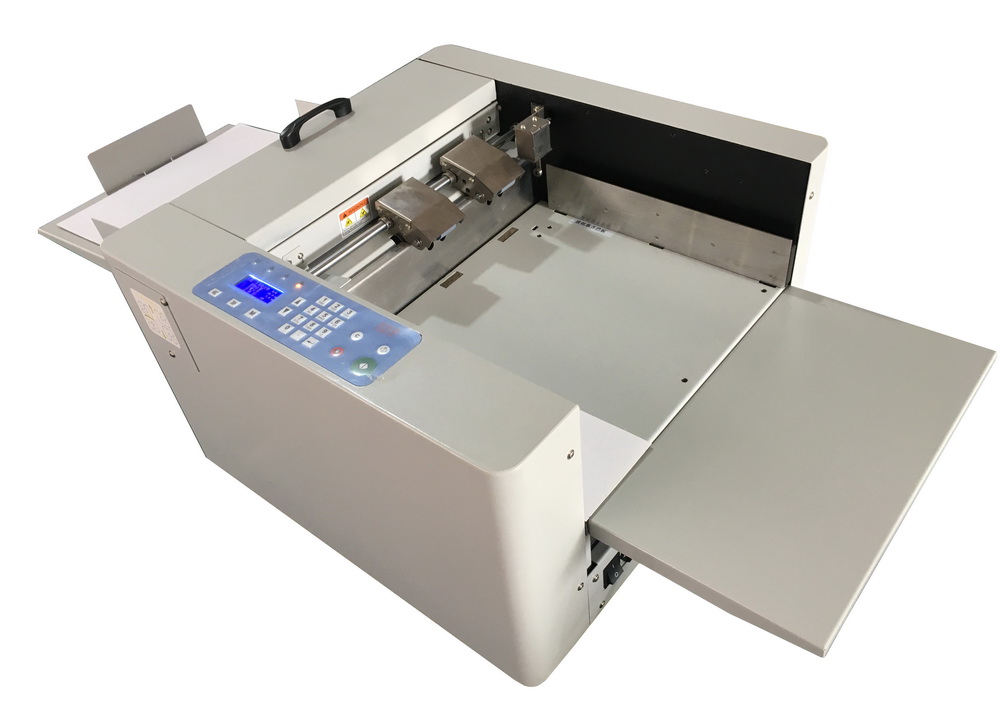

Auto Feeding Paper Creasing Machine
Model: ZFQ330
Price:
$1090.00
$1490.00
- Features
- Parameters
- Video
- Download
1.Digital creasing machine with auto lifting and feeding system.
2.LED display, multi-functional control panel, User-friendly operation interface.
3.Versatile in paper selection, comes with Non-paper/paper jam detection
4.With single line and dotting dies, inbuilt 2 fast cover creasing modes.
5.The book opening line is free to set. With variety of variables creasing mode.
6.Suitable for each width of 330mm, length of 999mm, thickness of 100-350gsm kind of paper.
7.The hardware structure of the machine ensures quick and easy to adjust the indentation depth and skew adjustment

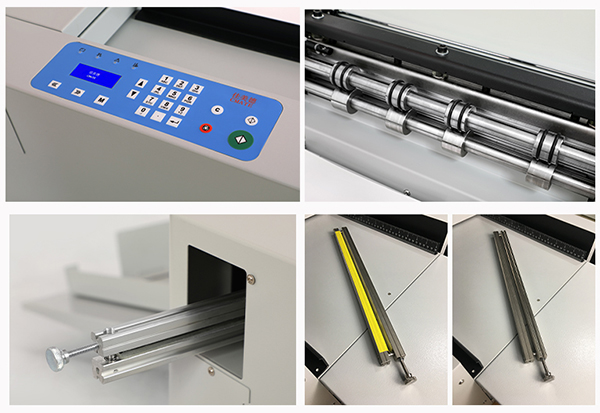

Machine details：
Dotting effect：
Package：
Machine details：
Dotting effect：
Package：
| Model | ZFQ330 |
| Working speed | 2400 sheets/hour (single line on A4 size paper) |
| Paper length | 100mm-999mm |
| Paper width | 70mm-330mm |
| Creasing width | 330mm |
| Paper thickness | Creasing line 70~350g, dotted 70~250g |
| Paper load | 5.5cm-6cm thickness |
| Creasing Precision | ±0.2mm |
| Creasing model | Single-line, dotted line |
| Min crease gap | Single line 1mm, dotted line 2mm |
| First crease minimum distance to head | Single line 1mm, dotted line 5mm |
| Paper flatness | Deformation<3mm |
| Crease qty in one pass | 0~32 |
| Max program qty | 32 |
| Vertical dotted line function | Optional |
| Creasing speed | Fast and slow two-speed adjustment |
| Power | 125W Standby power consumption 20W |
| Voltage | 200~240V/50Hz optional 110V/60HZ |
| Slope adjustment | Yes |
| Depth adjustment | Yes |
| Gross Power | 145W |
| Machine size | 1170mm*321mm*322mm |
| Net weight/Gross Weight | 48.5kg N.W/58.5kg G.W |
